Kurucz Model Stellar Atmosphere Lab
February 14, 2025
Overview
In this laboratory exercise, you will explore the relationships between
different types of stars and their radiated spectral energy distributions,
including how temperature and heavy-element abundances change stellar spectra,
how reasonable blackbody radiation is as an approximation to "real" stellar
radiation, and how the emergent spectrum translates into photometric "colors".
Rather than observed stellar spectra, you will analyze detailed model spectra
generated with the ATLAS stellar atmosphere code of Robert Kurucz and
collaborators. The Kurucz models are available online for a large range of
different types of stars, parameterized by "surface temperature"
Teff (effective photospheric temperature), "surface
gravity" g (gravitational acceleration at the photosphere, which differs
for dwarfs and giants of the same spectral type), metallicity [M/H] (log
heavy element abundance relative to Solar), and microturbulent
velocity vturb. In this lab, we will adopt
vturb = 2 km/s for all cases.
You will download and analyze the spectra on your own laptop computer,
running Python code in the Jupyter Notebook environment installed for a
previous lab assignment (probably launched from the Anaconda Navigator app).
You may also need a text editor to modify text files occasionally. Ask your
instructor if you need help with this.
An example plot command file is available in the directory linked below.
You are welcome to copy it to your work area and modify it with a text editor
for your own use. Please review it and ask if you have any questions.
A variety of reference materials on the relevant astrophysics, accessing the
data, and using various software applications are linked below following the
procedure instructions.
Laboratory Procedure
- Using Solar physical measurements (see below), determine which Kurucz
model in the families listed below is the closest match to the Sun (spectral
type G2 V). Report this choice and
download the model spectrum to your computer.
- Plot up the Kurucz spectrum using
Python (see examples below). Edit the Kurucz spectrum file to make sure
that all the flux data conform to standard computer scientific notation (e.g.,
9.87654E-321, not 9.87654-321) and all data columns are separated by at
least one space.
- In another line type (dotted or
dashed), overplot a blackbody curve
for Teff matching that of the chosen Kurucz spectrum,
scaled appropriately to have the same area under the curve. (To compute this
integral, find the sum of the flux in each spectral bin times the width of that
bin, which can be found for bin i as half the difference between the
center frequencies or wavelengths of bins i+1 and i-1.) Be
careful of units, and make sure you choose the right form of the Planck
function (per frequency or per wavelength). [Note: In order to avoid
floating-point overflow/underflow errors, you may need to specify some
constants like h, k, etc. as double-precision floating-point numbers, e.g., h =
6.626D-34 rather than 6.626E-34.]
- Is the blackbody spectrum a good fit to the
stellar model spectrum? If not, is there a better one at another
temperature? Explain why a Planck function is or is not a good fit to this
model.
- Repeat all the steps above for a Vega-like

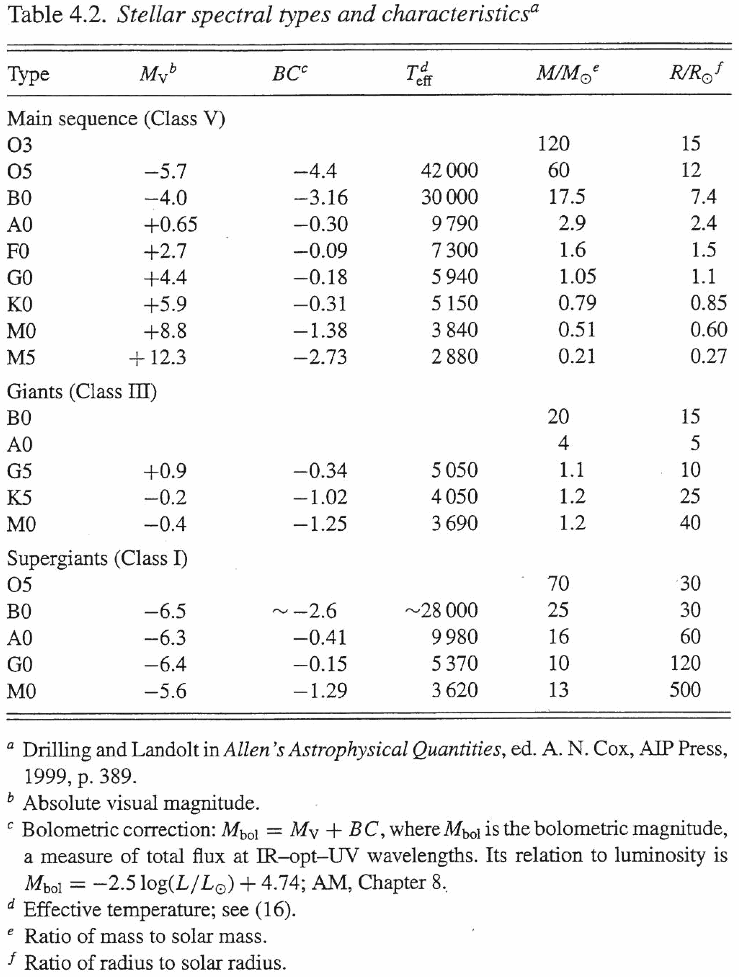

A0 V star with 30% Solar metallicity (use Bradt's tabulated
stellar parameters linked below; assume an isotropic A0 V star with the
official
Teff, ignoring Vega's own oblateness and the consequent bias
in its observed Teff).
- Estimate the integrated Kurucz model flux for
both the Solar-type and Vega-type stars in the U, B, and V
photometric filters, assuming (somewhat simplistically) that the
filters have perfect transmission within their respective passbands of 365 ±
34 nm, 440 ± 49 nm, and 550 ± 45 nm, and zero transmission outside these

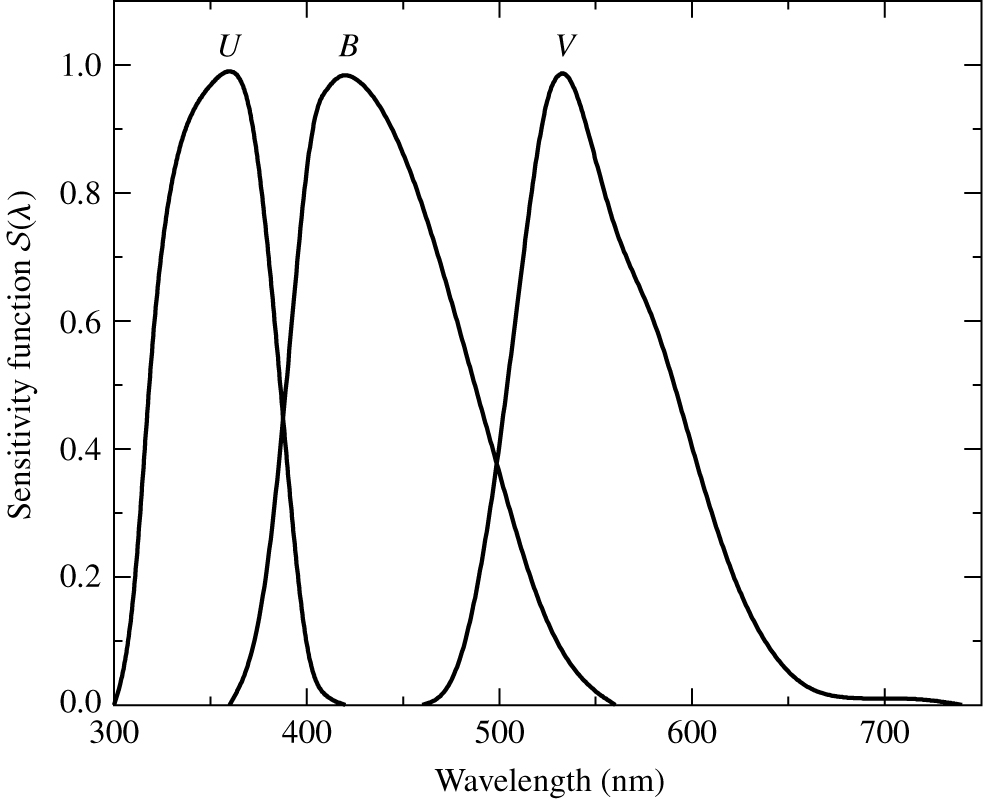

passbands (for real passband curves, see Carroll & Ostlie Fig. 3.10, linked
below). Record your integrated
fluxes fU, fB, and
fV in a table.
- From these integrated fluxes, calculate and
tabulate the U-B and B-V colors of the Solar-type
star, adopting the convention that Vega, as a photometric color
reference, has U-B = mU - mB = 0.0 and
B-V = mB - mV = 0.0. Recall that from the
definition of magnitude, m2 - m1 = -2.5
log10 (f2 / f1).
- Repeat the above analysis for a Solar-type
star with 10% Solar metallicity (metal-poor Galactic thin disk
Population I dwarf), including any graphs, discussions, and measurements
(you don't need to repeat the steps for Vega). Comment on differences between
the 10% and 100% metallicity spectra, and record any changes in UBV
colors.
- Repeat the above analysis for a Solar-type
star with 1% Solar metallicity (metal-poor Galactic thick disk
Population II subdwarf), including graphs, discussions, and measurements.
Describe any differences between the 1% and 10% metallicity spectra, and record
any changes in UBV colors.
- Repeat the above analysis for a Solar-type
star with 0.01% Solar metallicity (extreme metal-poor Galactic halo
Population II subdwarf), including graphs, discussions, and measurements.
Describe differences between the 0.01% and 1% metallicity spectra, and record
any changes in UBV colors.

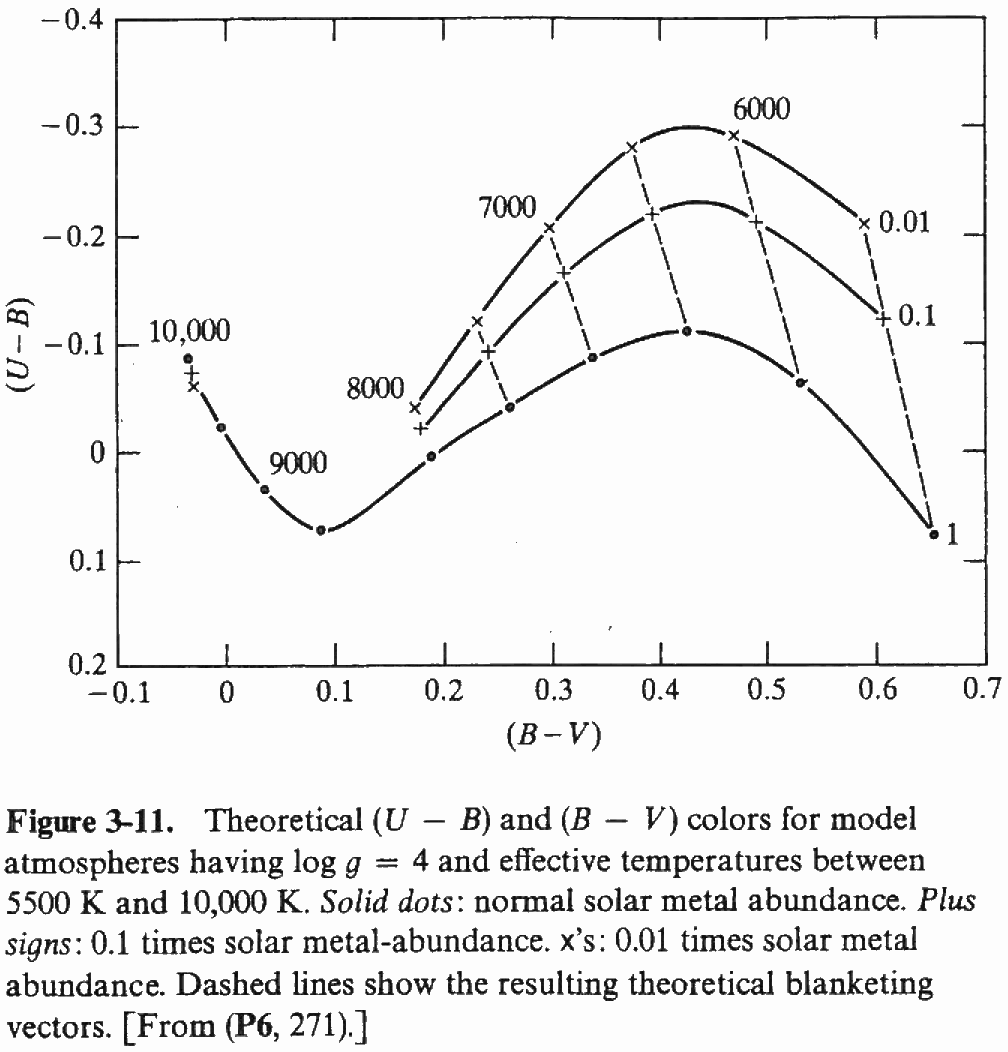

- Plot ``line blanketing vectors'' on
a U-B vs. B-V color-color diagram, showing how the
stellar model colors change from 0.01% to 1% to 10% to 100% Solar metallicity
(put a big fat point at each metallicity and connect the points with lines).
Compare these to Mihalas & Binney's Figure 3-11, linked below.
- Submit your completed work to your
instructor, including all required plots and other results as specified by the
questions above.
Software Links
Spectral Model Links
- Fiorella Castelli - Updated Kurucz Model Spectra - some model families:
- [M/H] = 0.0, vturb = 2.0 km/s, α = l/H = 1.25
- [M/H] = -0.5, vturb = 2.0 km/s, α = l/H = 1.25
- [M/H] = -1.0, vturb = 2.0 km/s, α = l/H = 1.25
- [M/H] = -2.0, vturb = 2.0 km/s, α = l/H = 1.25
- [M/H] = -4.0, vturb = 2.0 km/s, α = l/H = 1.25 + 0.4
- Note: [M/H] = log10 (nFe/nH) - log10 (nFe,Solar/nH,Solar)
- Note: logg = log10 (g), where g = G * M / R2 [cgs units]
- Robert Kurucz - Original Website + Papers
- STScI - Guide to Kurucz Models
